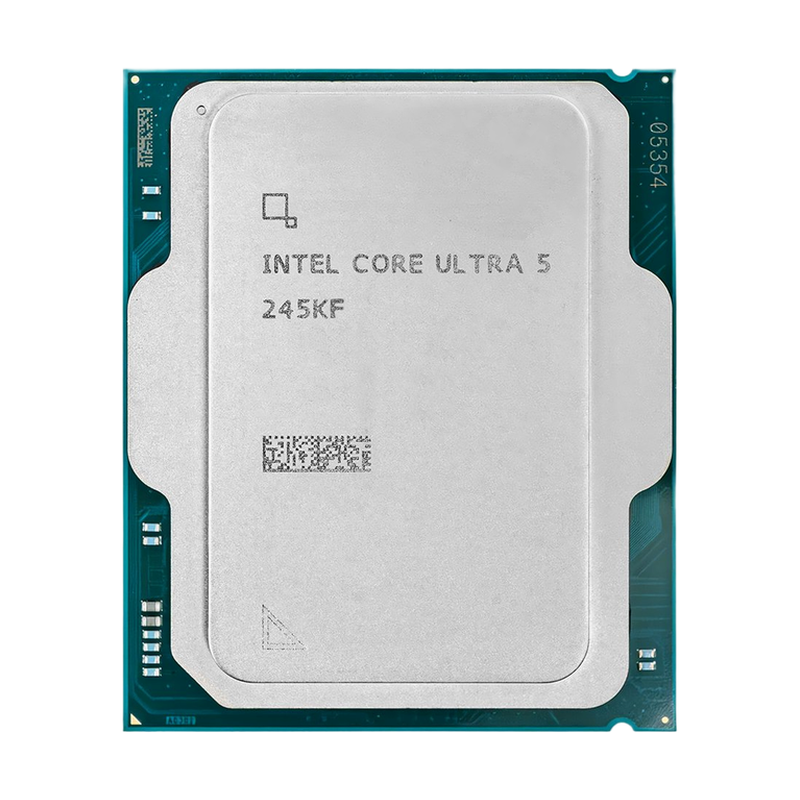

Intel Core Ultra 5 245KF Processor

The Intel Core Ultra 5 245KF Processor — 14 cores and 14 threads, 4.2 GHz base rising to 5.2 GHz with Turbo Boost, 24 MB Intel Smart Cache, 125 W processor base power, LGA1851. Supplied from stock with a 1-year warranty.

The 245K without integrated graphics

The Core Ultra 5 245KF is the 245K with the graphics engine disabled: six performance cores plus eight efficiency cores — fourteen cores, fourteen threads — at 4.20 GHz P-core base with a 5.20 GHz maximum turbo, an unlocked multiplier, 24 MB of cache and a 125 W base power, launched Q4 2024.

A discrete graphics card is required to POST; with one fitted it is identical to the 245K in every measurable respect, from the turbo behaviour to the DDR5-6400 memory support.

Technical specifications

Instruction set extensions: Intel SSE4.1, SSE4.2, AVX and AVX2. Security and virtualisation: AES-NI, Intel VT-x with EPT and VT-d, Intel Boot Guard. On-die AI acceleration comes from the Intel AI Boost NPU, and workload scheduling between the performance and efficiency cores is handled by Intel Thread Director.

Which systems take this processor

Anything on the LGA1851 socket with an Intel 800 series chipset: Z890 for overclocking, B860 and H810 for mainstream builds. This is a brand-new platform introduced with the Core Ultra Series 2 (Arrow Lake) desktop line: DDR5-only memory, PCIe 5.0 on the graphics link and an on-die NPU.

• Gaming and performance desktops — Z890 boards from ASUS ROG STRIX / TUF, MSI MPG and Gigabyte AORUS take the unlocked Series 2 parts in stride, with DDR5-6400 kits widely available.
• Mainstream and OEM towers — B860 and H810 boards, plus 2025-era machines from Dell, HP and Lenovo, were specified around the 65 W tier of this line; check the chassis CPU support list before transplanting between machines.
• Platform notes — memory is DDR5 UDIMM only (no DDR4 option on this socket), and both memory channels should be populated with a matched pair for the rated bandwidth.

Two caveats: LGA1851 boards do not accept LGA1700 processors and vice versa — the socket looks similar but the pinout and keying changed, so check the socket, not just the brand. On the other hand, the cooler mounting pattern carries over from LGA1700, so most recent tower coolers fit without a new bracket; verify the cooler's rated wattage against the processor anyway. Tell us the board or the machine model when you enquire and we will confirm before you order.

How it compares across the Core Ultra line

The 245K restores integrated graphics, the 250KF Plus is the 2026 refresh of the Ultra 5 F-tier with DDR5-7200, and the 265KF adds two performance cores; all share the LGA1851 platform.

How each processor is tested before it ships

1. Visual inspection of the integrated heat spreader, substrate and contact pads; the sSpec laser marking (SRQCY on our Ultra 5 245KF stock) is verified against the Intel specification sheet.
2. Burn-in on a matched diagnostic board with a pair of memory modules of the correct type for this platform.
3. All populated memory channels and the primary PCIe lanes are validated, then the processor is identified in the BIOS and in the operating system.
4. A sustained multi-threaded load test at full core count, with the clock and thermal readings recorded.
5. Thermal paste cleaned off, final inspection, then packaging in an anti-static tray with foam — which is how it arrives to you.

Warranty and lead time

Every processor is covered by a 1-year warranty against defects in workmanship and function. If a part fails within the period we replace it or refund it, and we cover return shipping on a verified fault. Stock is held in our own warehouse and normally dispatches within three to seven working days; tracking is issued at dispatch.

Purchasing and volume enquiries

The minimum order quantity for this processor is 2 units. Price is quotation-based rather than listed, because CPU pricing moves with each incoming batch — send us the quantity you need and we will come back with a firm quote and the current lead time. Larger quantities ship from the same production batch so the sSpec and the stepping stay consistent across your order.
