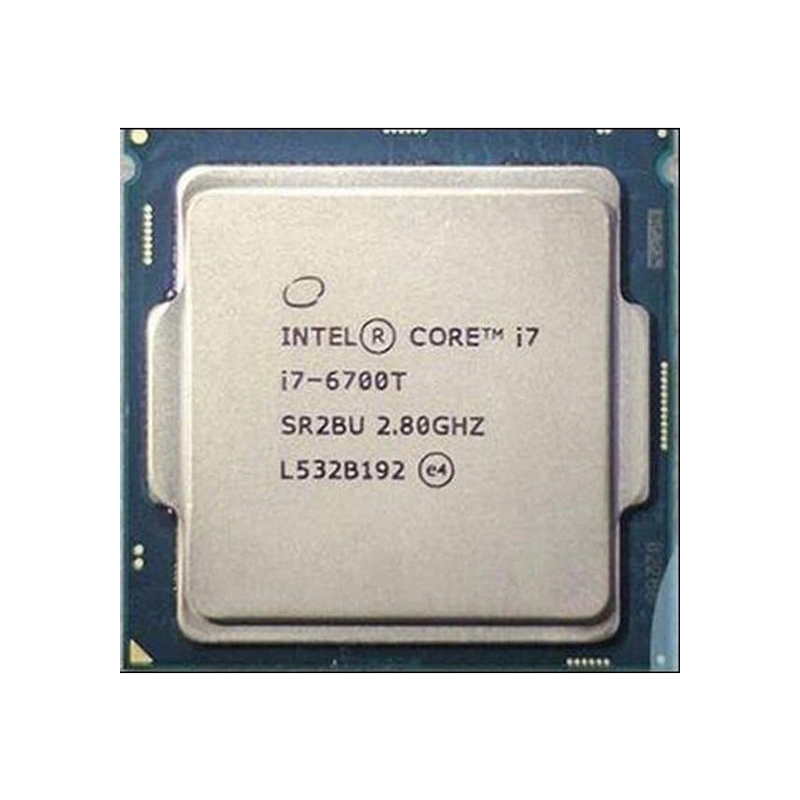

Intel Core i7-6700T Processor
2.8 GHz / 4 Cores / 8 Threads / 8 MB Cache / 35 W
- Part Number
- CORE-I7-6700T
- Brand
- Intel
- Category
- Desktop Processor
- Accepted Payments
- T/T Bank Transfer PayPal Western Union
Technical Specifications
| Socket | LGA1151 |
|---|---|
| Series | Core i7 |
| Generation | 6th Gen |
| Cores | 4 |
| Threads | 8 |
| Base Frequency | 2.8 GHz |
| Max Turbo Frequency | 3.6 GHz |
| Cache | 8 MB |
| TDP | 35 W |
| Integrated Graphics | Intel HD 530 |
| Unlocked | No (Locked) |
| Cooler Included | No (Tray / OEM) |
| Memory Type | DDR4 UDIMM |
| Max Memory Speed | 2133 |
| Memory Channels | 2 channels |
| PCIe Version | PCIe 3.0 |
| Lithography | Intel 14 nm |
| Condition | Used |
Frequently Asked Questions
The Intel Core i7-6700T Processor — 4 cores and 8 threads, 2.8 GHz base rising to 3.6 GHz with Turbo Boost, 8 MB Intel Smart Cache, 35 W processor base power, LGA1151. Supplied from stock with a 1-year warranty.
35 W Skylake for small chassis
The i7-6700T is the low-power Skylake i7: four cores with Hyper-Threading at 2.80 GHz with a 3.60 GHz Turbo inside a 35 W envelope. It was the standard fit for 1-litre desktops and thin SFF machines of the 2016 corporate generation.
Eight threads in a small thermal envelope made these machines popular for offices and digital signage. HD Graphics 530 with Quick Sync handles display output and video decode without a discrete card.
Technical specifications
| Product collection | 6th Generation Intel Core i7 Processors (Skylake) |
|---|---|
| Processor number / sSpec | i7-6700T / SR2BU/SR2L3 |
| Total cores / threads | 4 / 8 (Hyper-Threading) |
| Base frequency | 2.8 GHz |
| Max Turbo frequency | 3.6 GHz |
| Cache | 8 MB Intel Smart Cache |
| Processor base power | 35 W |
| Socket | LGA1151 |
| Memory | 2 channels DDR4-2133 or DDR3L-1600, up to 64 GB |
| Max memory size | 64 GB |
| Max memory bandwidth | 34.1 GB/s |
| PCI Express | PCIe 3.0 |
| Integrated graphics | Intel HD Graphics 530 |
| Overclocking | Locked (no multiplier control) |
| Lithography | 14 nm |
| Max operating temperature | 100 °C |
| Chipset support | Intel 100 series (H110, B150, H170, Q170, Z170) and C232/C236 |
| Launch | Q3 2015 |
Instruction set extensions: Intel SSE4.1, SSE4.2, AVX and AVX2. AVX-512 is not present on this generation. Security and virtualisation: AES-NI, Intel VT-x with EPT and VT-d, Intel Boot Guard.
Which systems take this processor
Anything on the FCLGA1151 socket with an Intel 100 or 200 series chipset: H110, B150, B250, H170, H270, Q170, Q270 and Z270. Boards built for 7th Generation parts will run 6th Generation processors, and most 6th Generation boards take 7th Generation parts after a BIOS update.
- Business desktops and SFF machines — Dell OptiPlex 3040 / 5040 / 7040, HP EliteDesk 800 G2 / ProDesk 600 G2, Lenovo ThinkCentre M700 / M900. These chassis shipped with this generation as a factory option, so replacement boards and coolers are easy to source.
- Entry workstations — HP Z240 SFF / Tower, Dell Precision T3620, Lenovo ThinkStation P310, where a 65 W quad-core with Hyper-Threading covers office, light CAD and point-of-sale duty.
- NAS and firewall builds — C236 boards such as Supermicro X11SSH and ASUS P10S accept Core i7 parts alongside Xeon E3, and the integrated graphics keeps the platform usable without a discrete card.
One caveat when buying a board separately: 100 series boards may need a BIOS from late 2015 or later before a 7th Generation part will POST, and 200 series boards handle both generations out of the box. Tell us the board or the machine model when you enquire and we will confirm before you order.
How it compares across the i7 line
| Processor | Cores / Threads | Base / Turbo | Cache | Power | Socket |
|---|---|---|---|---|---|
| i7-6700T | 4 / 8 | 2.80 / 3.60 GHz | 8 MB | 35 W | LGA1151 |
| i7-7700T | 4 / 8 | 2.90 / 3.80 GHz | 8 MB | 35 W | LGA1151 |
| i7-6700 | 4 / 8 | 3.40 / 4.00 GHz | 8 MB | 65 W | LGA1151 |
| i7-7700 | 4 / 8 | 3.60 / 4.20 GHz | 8 MB | 65 W | LGA1151 |
The 7700T is the Kaby Lake equivalent with slightly higher clocks on the same 35 W budget. The standard-power 6700 gives more sustained throughput if the chassis can take 65 W.
How each processor is tested before it ships
- Visual inspection of the integrated heat spreader, substrate and contact pads; the sSpec laser marking (SR2BU/SR2L3 on our i7-6700T stock) is verified against the Intel specification sheet.
- Burn-in on a matched diagnostic board with a pair of memory modules of the correct type for this platform.
- All populated memory channels and the primary PCIe lanes are validated, then the processor is identified in the BIOS and in the operating system.
- A sustained multi-threaded load test at full core count, with the clock and thermal readings recorded.
- Thermal paste cleaned off, final inspection, then packaging in an anti-static tray with foam — which is how it arrives to you.
Warranty and lead time
Every processor is covered by a 1-year warranty against defects in workmanship and function. If a part fails within the period we replace it or refund it, and we cover return shipping on a verified fault. Stock is held in our own warehouse and normally dispatches within three to seven working days; tracking is issued at dispatch.
Purchasing and volume enquiries
The minimum order quantity for this processor is 2 units. Price is quotation-based rather than listed, because CPU pricing moves with each incoming batch — send us the quantity you need and we will come back with a firm quote and the current lead time. Larger quantities ship from the same production batch so the sSpec and the stepping stay consistent across your order.
Get Pricing For This Part
Tell us who you are — we reply within one working day with a firm quote, stock status and lead time. Volume discounts available.
