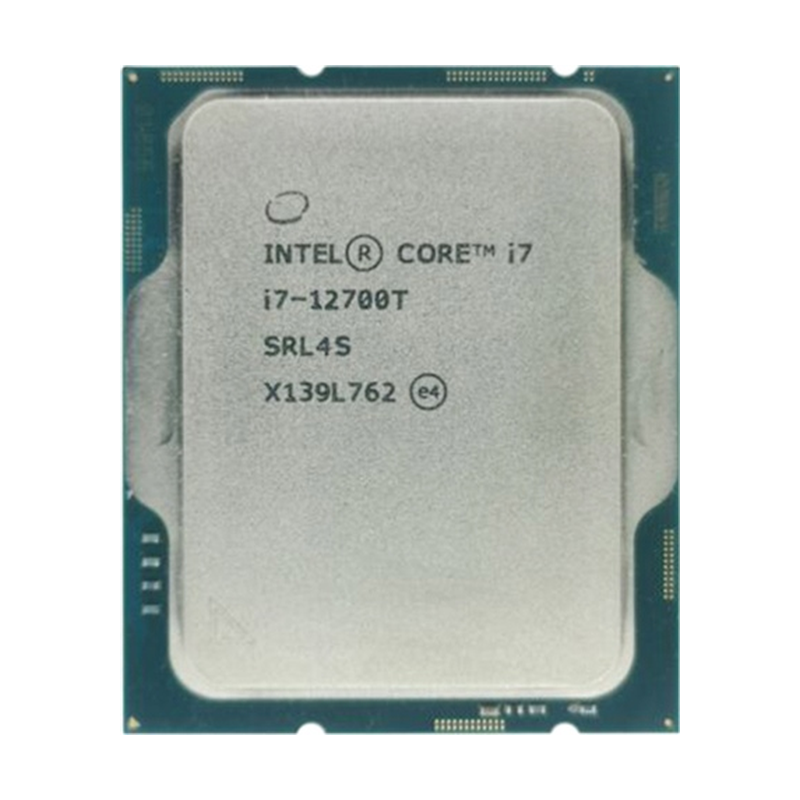

Intel Core i7-12700T Processor

The Intel Core i7-12700T Processor — 12 cores and 20 threads, 1.4 GHz base rising to 4.7 GHz with Turbo Boost, 25 MB Intel Smart Cache, 35 W processor base power, LGA1700. Supplied from stock with a 1-year warranty.

35 W twelve-core for mini desktops

The i7-12700T packs the Alder Lake twelve-core into a 35 W envelope: 1.40 GHz P-core base with a 4.70 GHz Turbo, 25 MB of cache, twenty threads. Launched Q1 2022, it is the standard fit for 1-litre and thin SFF machines of the LGA1700 corporate generation.

The 4.70 GHz Turbo keeps single-threaded work snappy in a mini chassis, while twenty threads handle heavy browser and terminal sessions. Intel UHD Graphics 770 with Quick Sync covers displays and decode, and PCIe 5.0 reaches the M.2 slots on the right boards.

Technical specifications

Instruction set extensions: Intel SSE4.1, SSE4.2, AVX and AVX2. Security and virtualisation: AES-NI, Intel VT-x with EPT and VT-d.

Which systems take this processor

Anything on the LGA1700 socket with an Intel 600 or 700 series chipset: H610, B660, H670, Q670, Z690, W680, B760, H770 and Z790. Both DDR4 and DDR5 boards exist for this socket — the memory type is a property of the board, not the processor, and these parts support either.

• Business desktops and SFF machines — Dell OptiPlex 3000 / 5000 / 7000 series, HP EliteDesk 800 G9, Lenovo ThinkCentre M70q / M90q. The 65 W envelope and low idle power suit 1-litre and micro-tower chassis.
• Entry workstations — HP Z2 G9, Dell Precision 3660, Lenovo ThinkStation P360, where hybrid cores with Hyper-Threading and PCIe 5.0 cover office, CAD and light rendering duty.
• Home lab and NAS builds — W680 boards support ECC UDIMMs with Core parts, and the integrated UHD 730 / 770 engine keeps transcoding on the iGPU.

One caveat when buying a board separately: 600 series boards may need a BIOS update before they recognise a 14th Generation part, and the LGA1700 socket has a loading-frame retention mechanism — check that the board ships with the correct frame. Tell us the board or the machine model when you enquire and we will confirm.

How it compares across the i7 line

The standard 12700 holds far more base clock inside 65 W — the pick when the chassis allows it. Within the T-line it is the top i7 bin of the Alder Lake generation.

How each processor is tested before it ships

1. Visual inspection of the integrated heat spreader, substrate and contact pads; the sSpec laser marking (SRL4S on our i7-12700T stock) is verified against the Intel specification sheet.
2. Burn-in on a matched diagnostic board with a pair of memory modules of the correct type for this platform.
3. All populated memory channels and the primary PCIe lanes are validated, then the processor is identified in the BIOS and in the operating system.
4. A sustained multi-threaded load test at full core count, with the clock and thermal readings recorded.
5. Thermal paste cleaned off, final inspection, then packaging in an anti-static tray with foam — which is how it arrives to you.

Warranty and lead time

Every processor is covered by a 1-year warranty against defects in workmanship and function. If a part fails within the period we replace it or refund it, and we cover return shipping on a verified fault. Stock is held in our own warehouse and normally dispatches within three to seven working days; tracking is issued at dispatch.

Purchasing and volume enquiries

The minimum order quantity for this processor is 2 units. Price is quotation-based rather than listed, because CPU pricing moves with each incoming batch — send us the quantity you need and we will come back with a firm quote and the current lead time. Larger quantities ship from the same production batch so the sSpec and the stepping stay consistent across your order.
