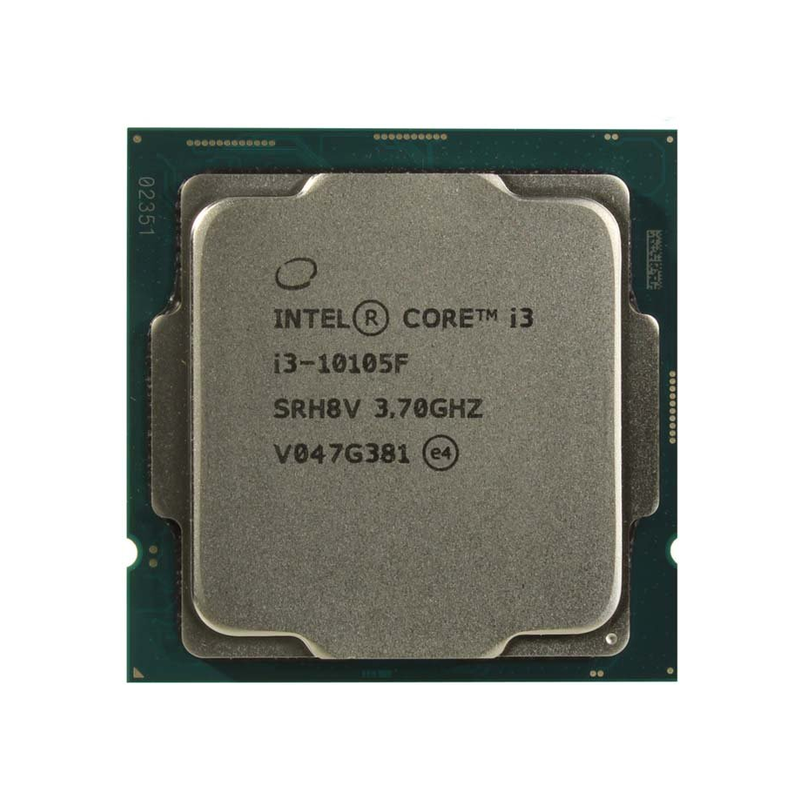

Intel Core i3-10105F Processor

The Intel Core i3-10105F Processor — 4 cores and 8 threads, 3.7 GHz base rising to 4.4 GHz with Turbo Boost, 6 MB Intel Smart Cache, 65 W processor base power, LGA1200. Supplied from stock with a 1-year warranty.

The quickest graphics-free Comet Lake i3

The i3-10105F is the quickest of the Comet Lake i3 family with graphics disabled: four cores, eight threads, 3.70 GHz base, 4.40 GHz Turbo, 6 MB of cache at 65 W. It is the part you fit when the machine already has a discrete card and you want maximum clocks per dollar rather than an integrated display engine.

Eight threads at 4.40 GHz is a meaningful amount of compute for an entry part — enough for office suites with large spreadsheets, browser-heavy line-of-business apps, and light content work, while staying inside the thermal envelope of a stock OEM cooler. DDR4-2666 gives it 41.6 GB/s of memory bandwidth, and PCIe 3.0 covers a discrete card without bottleneck.

Technical specifications

Instruction set extensions: Intel SSE4.1, SSE4.2, AVX and AVX2. Security and virtualisation: AES-NI, Intel VT-x with EPT and VT-d.

Which systems take this processor

Anything on the LGA1200 socket with an Intel 400 or 500 series chipset: H410, B460, H470, Q470, Z490, W480, H510, B560 and Z590. 10th Generation Core parts run on both generations of chipset; 11th Generation support is chipset-dependent and does not apply to these processors.

• Business desktops and SFF machines — Dell OptiPlex 3080 / 5080 / 7080, HP EliteDesk 800 G6 / ProDesk 600 G6, Lenovo ThinkCentre M70t / M90t. The 65 W envelope is what these chassis were designed around.
• Entry workstations — HP Z1 G6, Dell Precision 3640, Lenovo ThinkStation P340, where four cores with Hyper-Threading cover office, CAD and light simulation work.
• Micro-server and NAS builds — W480 and Q470 boards accept Core i3 parts with ECC UDIMMs, and the integrated graphics keeps the platform usable without a discrete card.

One caveat when buying a board separately: 400 series boards may need a BIOS update before they recognise a later 10th Generation stepping. Tell us the board or the machine model when you enquire and we will confirm before you order.

How it compares across the i3 line

Two variables separate these four parts: 100 MHz of clock and whether graphics are present. The 10105F is the top of the F line — buy it over the 10100F if the price difference is small, and over the 10105 only if a discrete card is already in the build.

How each processor is tested before it ships

1. Visual inspection of the integrated heat spreader, substrate and contact pads; the sSpec laser marking (SRH8V on our i3-10105F stock) is verified against the Intel specification sheet.
2. Burn-in on a matched diagnostic board with a pair of memory modules of the correct type for this platform.
3. All populated memory channels and the primary PCIe lanes are validated, then the processor is identified in the BIOS and in the operating system.
4. A sustained multi-threaded load test at full core count, with the clock and thermal readings recorded.
5. Thermal paste cleaned off, final inspection, then packaging in an anti-static tray with foam — which is how it arrives to you.

Warranty and lead time

Every processor is covered by a 1-year warranty against defects in workmanship and function. If a part fails within the period we replace it or refund it, and we cover return shipping on a verified fault. Stock is held in our own warehouse and normally dispatches within three to seven working days; tracking is issued at dispatch.

Purchasing and volume enquiries

The minimum order quantity for this processor is 2 units. Price is quotation-based rather than listed, because CPU pricing moves with each incoming batch — send us the quantity you need and we will come back with a firm quote and the current lead time. Larger quantities ship from the same production batch so the sSpec and the stepping stay consistent across your order.
